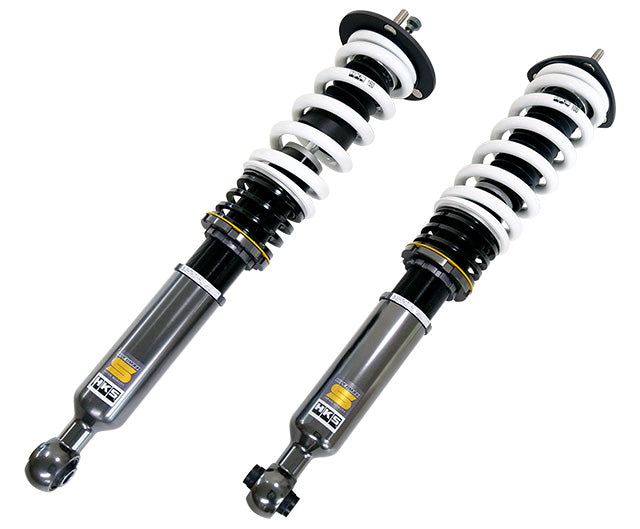

HKS Hipermax S Coilovers Lexus Is F (USE20) 80330-AT002
2 011 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AT002
FITMENT Lexus Is F (USE20) 2007-2014
GENERAL FEATURES Series - S Lexus Is F (USE20) - Engine - 2UR-GSE / Make to order item
FRONT FEATURES Lexus Is F (USE20) - Spring rate N/mm (kgf/mm) - 157(16) Lexus Is F (USE20) - Spring free height, mm - 200 Lexus Is F (USE20) - Damping force at 0.1 m/s, rebound/compression, N - 1648/608 Lexus Is F (USE20) - Vehicle height (highest - lowest), mm - -17(0 - -53) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Impossible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 157 ( 16.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 1648 / 608 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 70 / 46
REAR FEATURES Lexus Is F (USE20) - Spring rate N/mm (kgf/mm) - 98(10) Lexus Is F (USE20) - Spring free height, mm - 220(Barrel) Lexus Is F (USE20) - Damping force at 0.1 m/s, rebound/compression, N - 814/530 Lexus Is F (USE20) - Vehicle height (highest - lowest), mm - -19(0 - -77) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Impossible Damping force adjustment with wire - Yes Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 220 Spring type - Straight Barrel type Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 814 / 530 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 69 / 67
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AT002.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
