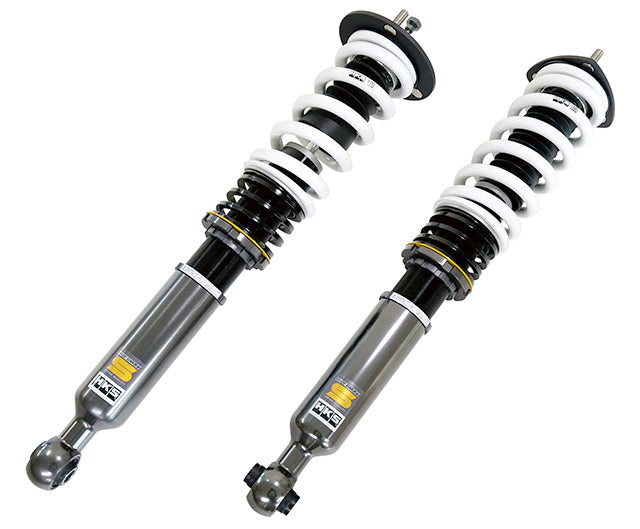

HKS Hipermax S Coilovers Toyota Crown / Toyota Crown Majesta / Toyota Mark X / Lexus Gs350 / Lexus Gs430 / Lexus Gs460 / Lexus Is250 / Lexus Is350 80330-AT003

80330-AT003

FITMENT
Toyota Crown (ARS210) 2015-2018
Toyota Crown (AWS210) 2012-2018
Toyota Crown (GRS214) 2012-2018
Toyota Crown (GRS210) 2012-2018
Toyota Crown (GRS200) 2008-2012
Toyota Crown (GRS202) 2008-2012
Toyota Crown (GRS204) 2008-2012
Toyota Crown (GRS184) 2005-2008
Toyota Crown (GRS182) 2003-2008
Toyota Crown (GRS180) 2003-2008
Toyota Crown Majesta (GWS214) 2013-2018
Toyota Mark X (GRX133) 2009-2019
Toyota Mark X (GRX130) 2009-2019
Toyota Mark X (GRX121) 2004-2009
Toyota Mark X (GRX120) 2004-2009
Lexus Gs350 (GRS191) 2005-2011
Lexus Gs430 (UZS190) 2005-2007
Lexus Gs460 (URS190) 2007-2011
Lexus Is250 (GSE20) 2005-2013
Lexus Is350 (GSE21) 2005-2013

GENERAL FEATURES
Series - S
Toyota Crown (ARS210) - Engine - 8AR-FTS / Testing confirmed on "2.0 ATHLETE T" model.
Toyota Crown (AWS210) - Engine - 2AR-FSE(2AR-1KM) / Testing confirmed on "ATHLETE HYBRID 2.5 G" model.
Toyota Crown (GRS214) - Engine - 2GR-FSE / Testing confirmed on "3.5 Athlete S" model.
Toyota Crown (GRS210) - Engine - 4GR-FSE / Testing confirmed on "3.5 Athlete S" model. Vehicle height data is measured on GRS214.
Toyota Crown (GRS200) - Engine - 4GR-FSE / Vehicle height data is measured on GRS204.
Toyota Crown (GRS202) - Engine - 3GR-FSE / Vehicle height data is measured on GRS204.
Toyota Crown (GRS204) - Engine - 2GR-FSE
Toyota Crown (GRS184) - Engine - 2GR-FSE
Toyota Crown (GRS182) - Engine - 3GR-FSE / Vehicle height data is measured on "GRS184".
Toyota Crown (GRS180) - Engine - 2GR-FSE / Vehicle height data is measured on "GRS184".
Toyota Crown Majesta (GWS214) - Engine - 2GR-FXE(2GR-1KM) / Testing confirmed on "HYBRID" model.
Toyota Mark X (GRX133) - Engine - 2GR-FSE / Vehicle height data is measured on GRX130.
Toyota Mark X (GRX130) - Engine - 4GR-FSE
Toyota Mark X (GRX121) - Engine - 3GR-FSE / Vehicle height data is measured on GRX120.
Toyota Mark X (GRX120) - Engine - 4GR-FSE
Lexus Gs350 (GRS191) - Engine - 2GR-FSE
Lexus Gs430 (UZS190) - Engine - 3UZ-FE / Vehicle height data is measured on GRS191.
Lexus Gs460 (URS190) - Engine - 1UR-FSE / Vehicle height data is measured on GRS191.
Lexus Is250 (GSE20) - Engine - 4GR-FSE / Vehicle height data is measured on GSE21.
Lexus Is350 (GSE21) - Engine - 2GR-FSE

FRONT FEATURES
Toyota Crown (ARS210) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (ARS210) - Spring free height, mm - 200
Toyota Crown (ARS210) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (ARS210) - Vehicle height (highest - lowest), mm - -27(0 - -57)
Toyota Crown (AWS210) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (AWS210) - Spring free height, mm - 200
Toyota Crown (AWS210) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (AWS210) - Vehicle height (highest - lowest), mm - -34(0 - -72)
Toyota Crown (GRS214) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS214) - Spring free height, mm - 200
Toyota Crown (GRS214) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS214) - Vehicle height (highest - lowest), mm - -32(0 - -69)
Toyota Crown (GRS210) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS210) - Spring free height, mm - 200
Toyota Crown (GRS210) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS210) - Vehicle height (highest - lowest), mm - -32(0 - -69)
Toyota Crown (GRS200) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS200) - Spring free height, mm - 200
Toyota Crown (GRS200) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS200) - Vehicle height (highest - lowest), mm - -47(0 - -80)
Toyota Crown (GRS202) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS202) - Spring free height, mm - 200
Toyota Crown (GRS202) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS202) - Vehicle height (highest - lowest), mm - -47(0 - -80)
Toyota Crown (GRS204) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS204) - Spring free height, mm - 200
Toyota Crown (GRS204) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS204) - Vehicle height (highest - lowest), mm - -47(0 - -80)
Toyota Crown (GRS184) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS184) - Spring free height, mm - 200
Toyota Crown (GRS184) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS184) - Vehicle height (highest - lowest), mm - -34(0 - -67)
Toyota Crown (GRS182) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS182) - Spring free height, mm - 200
Toyota Crown (GRS182) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS182) - Vehicle height (highest - lowest), mm - -34(0 - -67)
Toyota Crown (GRS180) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown (GRS180) - Spring free height, mm - 200
Toyota Crown (GRS180) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown (GRS180) - Vehicle height (highest - lowest), mm - -34(0 - -67)
Toyota Crown Majesta (GWS214) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Crown Majesta (GWS214) - Spring free height, mm - 200
Toyota Crown Majesta (GWS214) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Crown Majesta (GWS214) - Vehicle height (highest - lowest), mm - -53(0 - -81)
Toyota Mark X (GRX133) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Mark X (GRX133) - Spring free height, mm - 200
Toyota Mark X (GRX133) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Mark X (GRX133) - Vehicle height (highest - lowest), mm - -31(0 - -61)
Toyota Mark X (GRX130) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Mark X (GRX130) - Spring free height, mm - 200
Toyota Mark X (GRX130) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Mark X (GRX130) - Vehicle height (highest - lowest), mm - -31(0 - -61)
Toyota Mark X (GRX121) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Mark X (GRX121) - Spring free height, mm - 200
Toyota Mark X (GRX121) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Mark X (GRX121) - Vehicle height (highest - lowest), mm - -17(0 - -50)
Toyota Mark X (GRX120) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota Mark X (GRX120) - Spring free height, mm - 200
Toyota Mark X (GRX120) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Toyota Mark X (GRX120) - Vehicle height (highest - lowest), mm - -17(0 - -50)
Lexus Gs350 (GRS191) - Spring rate N/mm (kgf/mm) - 118(12)
Lexus Gs350 (GRS191) - Spring free height, mm - 200
Lexus Gs350 (GRS191) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Lexus Gs350 (GRS191) - Vehicle height (highest - lowest), mm - -37(0 - -71)
Lexus Gs430 (UZS190) - Spring rate N/mm (kgf/mm) - 118(12)
Lexus Gs430 (UZS190) - Spring free height, mm - 200
Lexus Gs430 (UZS190) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Lexus Gs430 (UZS190) - Vehicle height (highest - lowest), mm - -37(0 - -71)
Lexus Gs460 (URS190) - Spring rate N/mm (kgf/mm) - 118(12)
Lexus Gs460 (URS190) - Spring free height, mm - 200
Lexus Gs460 (URS190) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Lexus Gs460 (URS190) - Vehicle height (highest - lowest), mm - -37(0 - -71)
Lexus Is250 (GSE20) - Spring rate N/mm (kgf/mm) - 118(12)
Lexus Is250 (GSE20) - Spring free height, mm - 200
Lexus Is250 (GSE20) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Lexus Is250 (GSE20) - Vehicle height (highest - lowest), mm - -23(0 - -57)
Lexus Is350 (GSE21) - Spring rate N/mm (kgf/mm) - 118(12)
Lexus Is350 (GSE21) - Spring free height, mm - 200
Lexus Is350 (GSE21) - Damping force at 0.1 m/s, rebound/compression, N - 991/588
Lexus Is350 (GSE21) - Vehicle height (highest - lowest), mm - -23(0 - -57)

REAR FEATURES
Toyota Crown (ARS210) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (ARS210) - Spring free height, mm - 220(Barrel)
Toyota Crown (ARS210) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (ARS210) - Vehicle height (highest - lowest), mm - -24(0 - -95)
Toyota Crown (AWS210) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (AWS210) - Spring free height, mm - 220(Barrel)
Toyota Crown (AWS210) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (AWS210) - Vehicle height (highest - lowest), mm - -37(0 - -110)
Toyota Crown (GRS214) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS214) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS214) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS214) - Vehicle height (highest - lowest), mm - -24(0 - -106)
Toyota Crown (GRS210) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS210) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS210) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS210) - Vehicle height (highest - lowest), mm - -24(0 - -106)
Toyota Crown (GRS200) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS200) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS200) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS200) - Vehicle height (highest - lowest), mm - -31(0 - -113)
Toyota Crown (GRS202) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS202) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS202) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS202) - Vehicle height (highest - lowest), mm - -31(0 - -113)
Toyota Crown (GRS204) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS204) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS204) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS204) - Vehicle height (highest - lowest), mm - -31(0 - -113)
Toyota Crown (GRS184) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS184) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS184) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS184) - Vehicle height (highest - lowest), mm - -29(0 - -111)
Toyota Crown (GRS182) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS182) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS182) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS182) - Vehicle height (highest - lowest), mm - -29(0 - -111)
Toyota Crown (GRS180) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown (GRS180) - Spring free height, mm - 220(Barrel)
Toyota Crown (GRS180) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown (GRS180) - Vehicle height (highest - lowest), mm - -29(0 - -111)
Toyota Crown Majesta (GWS214) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown Majesta (GWS214) - Spring free height, mm - 220(Barrel)
Toyota Crown Majesta (GWS214) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Crown Majesta (GWS214) - Vehicle height (highest - lowest), mm - -56(0 - -138)
Toyota Mark X (GRX133) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Mark X (GRX133) - Spring free height, mm - 220(Barrel)
Toyota Mark X (GRX133) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Mark X (GRX133) - Vehicle height (highest - lowest), mm - -25(0 - -97)
Toyota Mark X (GRX130) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Mark X (GRX130) - Spring free height, mm - 220(Barrel)
Toyota Mark X (GRX130) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Mark X (GRX130) - Vehicle height (highest - lowest), mm - -25(0 - -97)
Toyota Mark X (GRX121) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Mark X (GRX121) - Spring free height, mm - 220(Barrel)
Toyota Mark X (GRX121) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Mark X (GRX121) - Vehicle height (highest - lowest), mm - -19(0 - -88)
Toyota Mark X (GRX120) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Mark X (GRX120) - Spring free height, mm - 220(Barrel)
Toyota Mark X (GRX120) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Toyota Mark X (GRX120) - Vehicle height (highest - lowest), mm - -19(0 - -88)
Lexus Gs350 (GRS191) - Spring rate N/mm (kgf/mm) - 78(8)
Lexus Gs350 (GRS191) - Spring free height, mm - 220(Barrel)
Lexus Gs350 (GRS191) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Lexus Gs350 (GRS191) - Vehicle height (highest - lowest), mm - -20(0 - -102)
Lexus Gs430 (UZS190) - Spring rate N/mm (kgf/mm) - 78(8)
Lexus Gs430 (UZS190) - Spring free height, mm - 220(Barrel)
Lexus Gs430 (UZS190) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Lexus Gs430 (UZS190) - Vehicle height (highest - lowest), mm - -20(0 - -102)
Lexus Gs460 (URS190) - Spring rate N/mm (kgf/mm) - 78(8)
Lexus Gs460 (URS190) - Spring free height, mm - 220(Barrel)
Lexus Gs460 (URS190) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Lexus Gs460 (URS190) - Vehicle height (highest - lowest), mm - -20(0 - -102)
Lexus Is250 (GSE20) - Spring rate N/mm (kgf/mm) - 78(8)
Lexus Is250 (GSE20) - Spring free height, mm - 220(Barrel)
Lexus Is250 (GSE20) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Lexus Is250 (GSE20) - Vehicle height (highest - lowest), mm - -23(0 - -110)
Lexus Is350 (GSE21) - Spring rate N/mm (kgf/mm) - 78(8)
Lexus Is350 (GSE21) - Spring free height, mm - 220(Barrel)
Lexus Is350 (GSE21) - Damping force at 0.1 m/s, rebound/compression, N - 1108/598
Lexus Is350 (GSE21) - Vehicle height (highest - lowest), mm - -23(0 - -110)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT003.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
