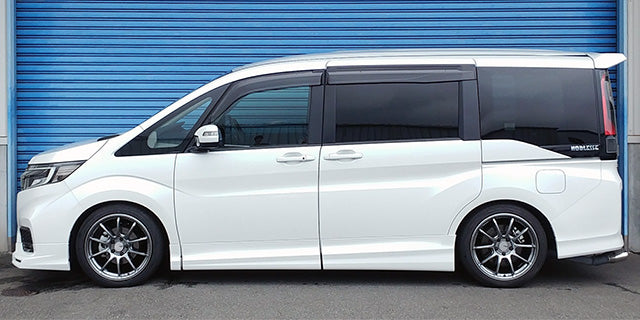

GENERAL FEATURES Series - S Honda Stepwgn (RP3) - Engine - L15B / Make to order item 4WD is not confirmed. Damping force cannot be changed. Honda Stepwgn (RP1) - Engine - L15B / Make to order item 4WD is not confirmed. Damping force cannot be changed. Compatible with the later model made after Sep. 2017.
FRONT FEATURES Honda Stepwgn (RP3) - Spring rate N/mm (kgf/mm) - 39(4) Honda Stepwgn (RP3) - Spring free height, mm - 250(Barrel) Honda Stepwgn (RP3) - Damping force at 0.1 m/s, rebound/compression, N - 284/157 Honda Stepwgn (RP3) - Vehicle height (highest - lowest), mm - -34(0 - -92) Honda Stepwgn (RP3) - Vehicle height (highest - lowest), mm - -36(-4 - -94) Honda Stepwgn (RP1) - Spring rate N/mm (kgf/mm) - 39(4) Honda Stepwgn (RP1) - Spring free height, mm - 250(Barrel) Honda Stepwgn (RP1) - Damping force at 0.1 m/s, rebound/compression, N - 284/157 Honda Stepwgn (RP1) - Vehicle height (highest - lowest), mm - -32(0 - -94)
REAR FEATURES Honda Stepwgn (RP3) - Spring rate N/mm (kgf/mm) - 49(5) Honda Stepwgn (RP3) - Spring free height, mm - 220(Barrel) Honda Stepwgn (RP3) - Damping force at 0.1 m/s, rebound/compression, N - 314/118 Honda Stepwgn (RP3) - Vehicle height (highest - lowest), mm - -38(-28 - -97) Honda Stepwgn (RP3) - Vehicle height (highest - lowest), mm - -39(-29 - -97) Honda Stepwgn (RP1) - Spring rate N/mm (kgf/mm) - 49(5) Honda Stepwgn (RP1) - Spring free height, mm - 220(Barrel) Honda Stepwgn (RP1) - Damping force at 0.1 m/s, rebound/compression, N - 314/118 Honda Stepwgn (RP1) - Vehicle height (highest - lowest), mm - -31(-21 - -89)
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH022FD.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
