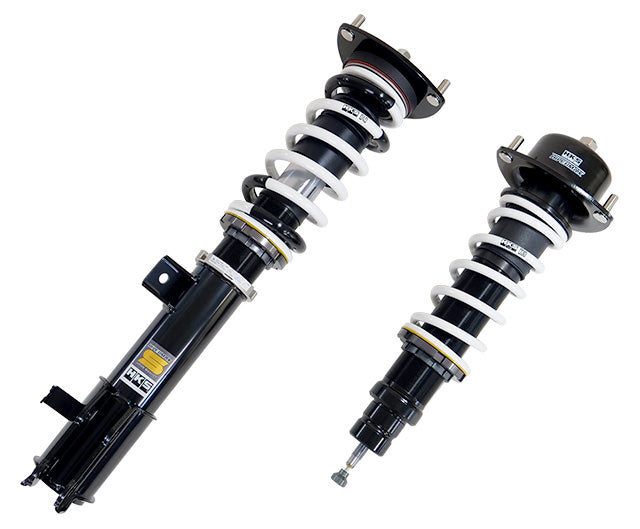

HKS Hipermax S Coilovers Honda S660 (JW5) 80330-AH007P

80330-AH007P

FITMENT
Honda S660 (JW5) 2015-2022

GENERAL FEATURES
Series - S
Honda S660 (JW5) - Engine - S07A(TURBO) / Front Upper Mount Pillow ball type
Additional manufacturer specification data follows below.

FRONT FEATURES
Honda S660 (JW5) - Spring rate N/mm (kgf/mm) - 29(3)
Honda S660 (JW5) - Spring free height, mm - 200
Honda S660 (JW5) - Damping force at 0.1 m/s, rebound/compression, N - 221/127
Honda S660 (JW5) - Vehicle height (highest - lowest), mm - -19(0 - -39)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - ×
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 29 ( 3.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 221 / 127
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 36 / 53

REAR FEATURES
Honda S660 (JW5) - Spring rate N/mm (kgf/mm) - 39(4)
Honda S660 (JW5) - Spring free height, mm - 220(Barrel)
Honda S660 (JW5) - Damping force at 0.1 m/s, rebound/compression, N - 211/235
Honda S660 (JW5) - Vehicle height (highest - lowest), mm - -21(0 - -52)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 39 ( 4.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 211 / 235
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 35 / 81

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AH007P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
