GENERAL FEATURES Series - S Honda S2000 (AP2) - Engine - F22C / 4WD, Height data is based on AP1. Honda S2000 (AP1) - Engine - F20C
FRONT FEATURES Honda S2000 (AP2) - Spring rate N/mm (kgf/mm) - 98(10) Honda S2000 (AP2) - Spring free height, mm - 200 Honda S2000 (AP2) - Damping force at 0.1 m/s, rebound/compression, N - 1535/407 Honda S2000 (AP2) - Vehicle height (highest - lowest), mm - -29(0 - -77) Honda S2000 (AP1) - Spring rate N/mm (kgf/mm) - 98(10) Honda S2000 (AP1) - Spring free height, mm - 200 Honda S2000 (AP1) - Damping force at 0.1 m/s, rebound/compression, N - 1535/407 Honda S2000 (AP1) - Vehicle height (highest - lowest), mm - -29(0 - -77)
REAR FEATURES Honda S2000 (AP2) - Spring rate N/mm (kgf/mm) - 98(10) Honda S2000 (AP2) - Spring free height, mm - 170 Honda S2000 (AP2) - Damping force at 0.1 m/s, rebound/compression, N - 898/329 Honda S2000 (AP2) - Vehicle height (highest - lowest), mm - -28(0 - -53) Honda S2000 (AP1) - Spring rate N/mm (kgf/mm) - 98(10) Honda S2000 (AP1) - Spring free height, mm - 170 Honda S2000 (AP1) - Damping force at 0.1 m/s, rebound/compression, N - 898/329 Honda S2000 (AP1) - Vehicle height (highest - lowest), mm - -28(0 - -53)

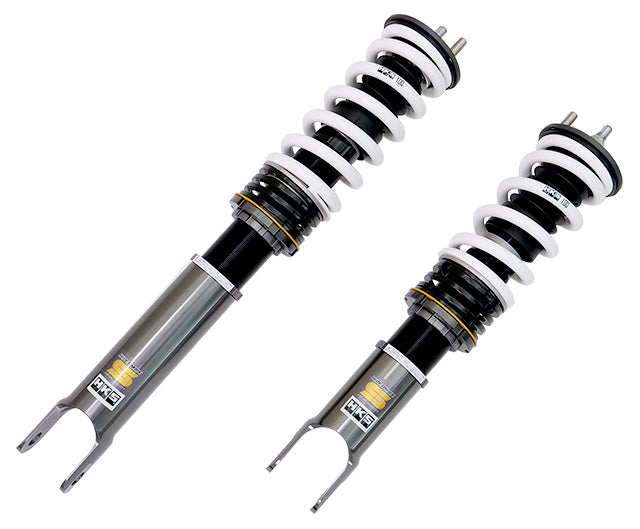

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH001.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
