GENERAL FEATURES Series - S Honda Odyssey (RC4) - Engine - LFA-H4 Honda Odyssey (RC1) - Engine - K24W / A test vehicle is ABSOLUTE. Compatibility for the standard model is not confirmed.
FRONT FEATURES Honda Odyssey (RC4) - Spring rate N/mm (kgf/mm) - 49(5) Honda Odyssey (RC4) - Spring free height, mm - 250(Barrel) Honda Odyssey (RC4) - Damping force at 0.1 m/s, rebound/compression, N - 554/191 Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -33(-6 - -69) Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -27(0 - -66) Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -35(-8 - -74) Honda Odyssey (RC1) - Spring rate N/mm (kgf/mm) - 49(5) Honda Odyssey (RC1) - Spring free height, mm - 250(Barrel) Honda Odyssey (RC1) - Damping force at 0.1 m/s, rebound/compression, N - 554/191 Honda Odyssey (RC1) - Vehicle height (highest - lowest), mm - -22(0 - -61) Honda Odyssey (RC1) - Vehicle height (highest - lowest), mm - -30(-3 - -69)
REAR FEATURES Honda Odyssey (RC4) - Spring rate N/mm (kgf/mm) - 68(6.9) Honda Odyssey (RC4) - Spring free height, mm - Special Honda Odyssey (RC4) - Damping force at 0.1 m/s, rebound/compression, N - 294/162 Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -23(-8 - -59) Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -32(-11 - -63) Honda Odyssey (RC4) - Vehicle height (highest - lowest), mm - -37(-18 - -68) Honda Odyssey (RC1) - Spring rate N/mm (kgf/mm) - 68(6.9) Honda Odyssey (RC1) - Spring free height, mm - Special Honda Odyssey (RC1) - Damping force at 0.1 m/s, rebound/compression, N - 294/162 Honda Odyssey (RC1) - Vehicle height (highest - lowest), mm - -26(-5 - -57) Honda Odyssey (RC1) - Vehicle height (highest - lowest), mm - -31(-10 - -62)

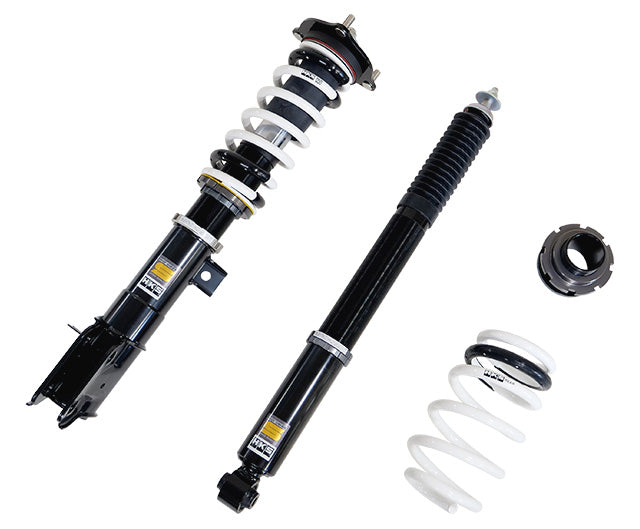

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH015.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
