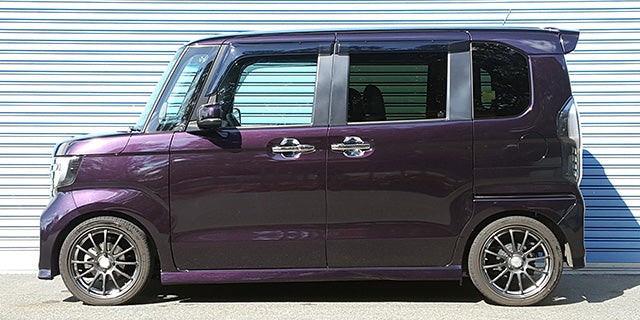

HKS Hipermax S Coilovers Honda N-Box Custom (JF3) 80330-AH017

80330-AH017

FITMENT
Honda N-Box Custom (JF3) 2017-2023

GENERAL FEATURES
Series - S
Honda N-Box Custom (JF3) - Engine - S07B(TURBO) / Make to order item Cut modification of the stock rear spring mounting rubber is necessary.

FRONT FEATURES
Honda N-Box Custom (JF3) - Spring rate N/mm (kgf/mm) - 39(4)
Honda N-Box Custom (JF3) - Spring free height, mm - 200(Barrel)
Honda N-Box Custom (JF3) - Damping force at 0.1 m/s, rebound/compression, N - 407/177
Honda N-Box Custom (JF3) - Vehicle height (highest - lowest), mm - -22(0 - -56)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 39 ( 4.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 407 / 177
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 40 / 59

REAR FEATURES
Honda N-Box Custom (JF3) - Spring rate N/mm (kgf/mm) - 25(2.5)
Honda N-Box Custom (JF3) - Spring free height, mm - Special
Honda N-Box Custom (JF3) - Damping force at 0.1 m/s, rebound/compression, N - 162/103
Honda N-Box Custom (JF3) - Vehicle height (highest - lowest), mm - -21(-3 - -43)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 25 ( 2.5 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 162 / 103
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 57 / 79

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AH017.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
