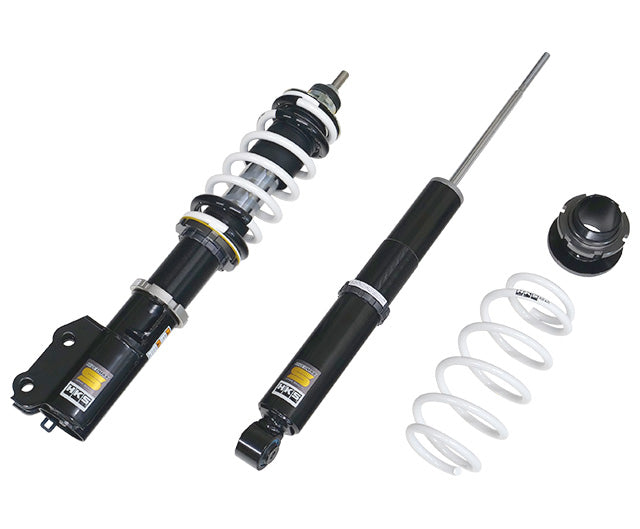

HKS Hipermax S Coilovers Honda Fit (GK5) / Honda Fit (GK3) / Honda Fit (GP5) 80330-AH020FD
1 752 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AH020FD
FITMENT Honda Fit (GK5) 2013-2020 Honda Fit (GK3) 2013-2020 Honda Fit (GP5) 2013-2020
GENERAL FEATURES Series - S Honda Fit (GK5) - Engine - L15B / Make to order item Damping force cannot be changed. Grade - RS, 6MT. Honda Fit (GK3) - Engine - L13B / Make to order item Damping force cannot be changed. Vehicle height data is based on FIT HYBRID(GP5). Honda Fit (GP5) - Engine - LEB-H1 / Make to order item Damping force cannot be changed. HYBRID
FRONT FEATURES Honda Fit (GK5) - Spring rate N/mm (kgf/mm) - 29(3) Honda Fit (GK5) - Spring free height, mm - 250(Barrel) Honda Fit (GK5) - Damping force at 0.1 m/s, rebound/compression, N - 294/127 Honda Fit (GK5) - Vehicle height (highest - lowest), mm - -24(0 - -64) Honda Fit (GK3) - Spring rate N/mm (kgf/mm) - 29(3) Honda Fit (GK3) - Spring free height, mm - 250(Barrel) Honda Fit (GK3) - Damping force at 0.1 m/s, rebound/compression, N - 294/127 Honda Fit (GK3) - Vehicle height (highest - lowest), mm - -30(-9 - -74) Honda Fit (GP5) - Spring rate N/mm (kgf/mm) - 29(3) Honda Fit (GP5) - Spring free height, mm - 250(Barrel) Honda Fit (GP5) - Damping force at 0.1 m/s, rebound/compression, N - 294/127 Honda Fit (GP5) - Vehicle height (highest - lowest), mm - -30(-9 - -74)
REAR FEATURES Honda Fit (GK5) - Spring rate N/mm (kgf/mm) - 20(2) Honda Fit (GK5) - Spring free height, mm - Special Honda Fit (GK5) - Damping force at 0.1 m/s, rebound/compression, N - 118/69 Honda Fit (GK5) - Vehicle height (highest - lowest), mm - -38(-7 - -72) Honda Fit (GK3) - Spring rate N/mm (kgf/mm) - 20(2) Honda Fit (GK3) - Spring free height, mm - Special Honda Fit (GK3) - Damping force at 0.1 m/s, rebound/compression, N - 118/69 Honda Fit (GK3) - Vehicle height (highest - lowest), mm - -40(-30 - -95) Honda Fit (GP5) - Spring rate N/mm (kgf/mm) - 20(2) Honda Fit (GP5) - Spring free height, mm - Special Honda Fit (GP5) - Damping force at 0.1 m/s, rebound/compression, N - 118/69 Honda Fit (GP5) - Vehicle height (highest - lowest), mm - -40(-30 - -95)
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH020FD.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
