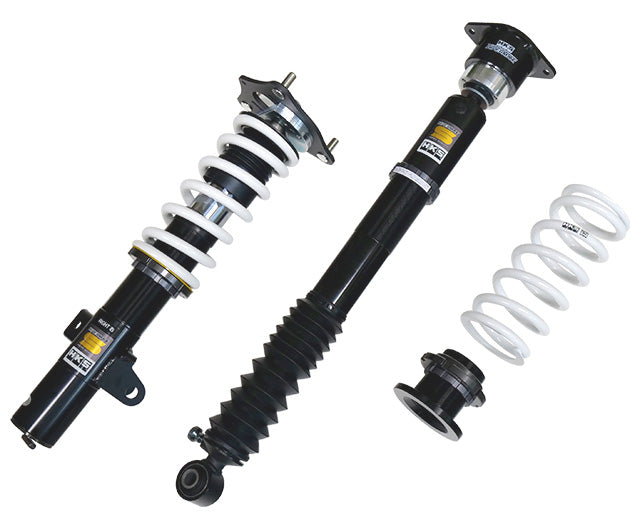

HKS Hipermax S Coilovers Honda Civic Type R (FK8) 80330-AH012P
2 469 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AH012P
FITMENT Honda Civic Type R (FK8) 2017-2022
GENERAL FEATURES Series - S Honda Civic Type R (FK8) - Engine - K20C / Make to order item An error message will be displayed when the OEM suspension is removed. The error display can be avoided by purchasing a canceller separately. (Code No. 45012-AH002 - SEC II Type-H) Additional manufacturer specification data follows below.
FRONT FEATURES Honda Civic Type R (FK8) - Spring rate N/mm (kgf/mm) - 78(8) Honda Civic Type R (FK8) - Spring free height, mm - 200 Honda Civic Type R (FK8) - Damping force at 0.1 m/s, rebound/compression, N - 1089/618 Honda Civic Type R (FK8) - Vehicle height (highest - lowest), mm - -16(-10 - -38*) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - × Upper mount - Spherical bearing Inverted/Normal type - Inverted Damper/Spring layout - Coilover Spring rate change at factory - Impossible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - Not fitted / not applicable Spring rate N/mm(kgf/mm) - 78 ( 8.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 1089 / 618 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 45 / 54
REAR FEATURES Honda Civic Type R (FK8) - Spring rate N/mm (kgf/mm) - 59(6) Honda Civic Type R (FK8) - Spring free height, mm - 200 Honda Civic Type R (FK8) - Damping force at 0.1 m/s, rebound/compression, N - 265/309 Honda Civic Type R (FK8) - Vehicle height (highest - lowest), mm - -16(-1 - -51) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Separated Spring rate change at factory - Impossible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - Not fitted / not applicable Spring rate N/mm(kgf/mm) - 59 ( 6.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 265 / 309 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 67 / 90
Remarks
Only for TYPE R. Front Upper Mount Pillow ball type.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH012P.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
