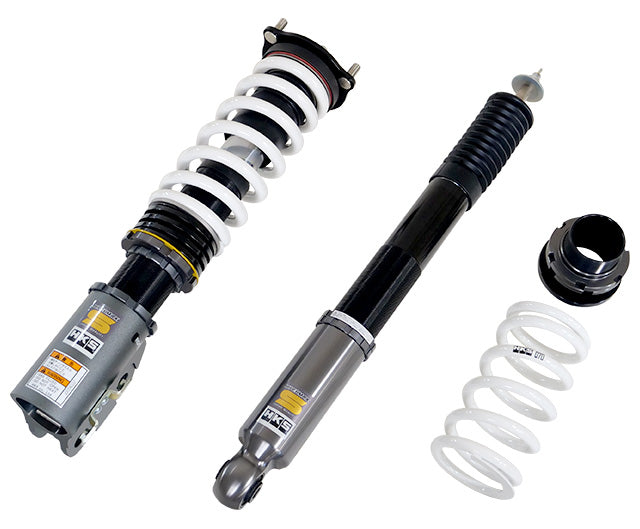

HKS Hipermax S Coilovers Honda Civic Type R (FD2) 80330-AH003

80330-AH003

FITMENT
Honda Civic Type R (FD2) 2007-2010

GENERAL FEATURES
Series - S
Honda Civic Type R (FD2) - Engine - K20A / MUGEN RR is not confirmed. Developed with a 6MT.
Additional manufacturer specification data follows below.

FRONT FEATURES
Honda Civic Type R (FD2) - Spring rate N/mm (kgf/mm) - 88(9)
Honda Civic Type R (FD2) - Spring free height, mm - 220(Barrel)
Honda Civic Type R (FD2) - Damping force at 0.1 m/s, rebound/compression, N - 814/333
Honda Civic Type R (FD2) - Vehicle height (highest - lowest), mm - -20(0 - -67)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 814 / 333
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 47 / 69

REAR FEATURES
Honda Civic Type R (FD2) - Spring rate N/mm (kgf/mm) - 69(7)
Honda Civic Type R (FD2) - Spring free height, mm - 170
Honda Civic Type R (FD2) - Damping force at 0.1 m/s, rebound/compression, N - 304/284
Honda Civic Type R (FD2) - Vehicle height (highest - lowest), mm - -29(-6 - -47)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 304 / 284
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 51 / 65

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AH003.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
