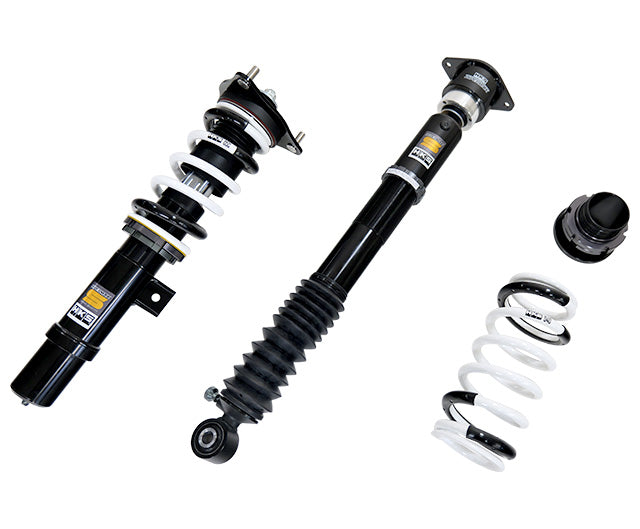

HKS Hipermax S Coilovers Honda Civic (FL1) 80330-AH011

80330-AH011

FITMENT
Honda Civic (FL1) 2021-

GENERAL FEATURES
Series - S
Honda Civic (FL1) - Engine - L15C / It can be compatible with the vehicle having an insertion diameter of 50.6 mm on the front knuckle. Attach/detach the front knuckle and hub ASSY is necessary when removing the stock suspension. We recommend product installation by a skilled auto technician at your local dealer or retailer. Not compatible with RS

FRONT FEATURES
Honda Civic (FL1) - Spring rate N/mm (kgf/mm) - 49(5)
Honda Civic (FL1) - Spring free height, mm - 200(Barrel)
Honda Civic (FL1) - Damping force at 0.1 m/s, rebound/compression, N - 284/270
Honda Civic (FL1) - Vehicle height (highest - lowest), mm - -30(-18 - -61)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - ×
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 284 / 270
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 48 / 60

REAR FEATURES
Honda Civic (FL1) - Spring rate N/mm (kgf/mm) - 39(4)
Honda Civic (FL1) - Spring free height, mm - 220(Barrel)
Honda Civic (FL1) - Damping force at 0.1 m/s, rebound/compression, N - 299/216
Honda Civic (FL1) - Vehicle height (highest - lowest), mm - -30(-1 - -109)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 39 ( 4.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 299 / 216
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 63 / 71

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AH011.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
