GENERAL FEATURES Series - S Honda Civic (FC1) - Engine - L15B / Compatible with FC1 (JDM) vehicle. It can be compatible with the vehicle having an insertion diameter of 52.0 mm on the front knuckle. It does not compatible with Si grade or vehicles with an insertion diameter of 50.5 mm of the front knuckle. Attach/detach the front knuckle and hub ASSY is necessary when removing the stock suspension. We recommend product installation by a skilled auto technician at your local dealer or retailer. Honda Civic (FK7) - Engine - L15C / Compatible with JDM vehicles made after Sep. 2017 or later. It can be compatible with the vehicle having an insertion diameter of 52.0 mm on the front knuckle. It does not compatible with type-R or vehicles with an insertion diameter of 50.5 mm of the front knuckle (Part of the vehicles sold in the overseas market). Attach/detach the front knuckle and hub ASSY is necessary when removing the stock suspension. We recommend product installation by a skilled auto technician at your local dealer or retailer.
FRONT FEATURES Honda Civic (FC1) - Spring rate N/mm (kgf/mm) - 49(5) Honda Civic (FC1) - Spring free height, mm - 200(Barrel) Honda Civic (FC1) - Damping force at 0.1 m/s, rebound/compression, N - 333/299 Honda Civic (FC1) - Vehicle height (highest - lowest), mm - -37(-25 - -48) Honda Civic (FK7) - Spring rate N/mm (kgf/mm) - 49(5) Honda Civic (FK7) - Spring free height, mm - 200(Barrel) Honda Civic (FK7) - Damping force at 0.1 m/s, rebound/compression, N - 333/299 Honda Civic (FK7) - Vehicle height (highest - lowest), mm - -31(-19 - -42)
REAR FEATURES Honda Civic (FC1) - Spring rate N/mm (kgf/mm) - 39(4) Honda Civic (FC1) - Spring free height, mm - 220(Barrel) Honda Civic (FC1) - Damping force at 0.1 m/s, rebound/compression, N - 167/137 Honda Civic (FC1) - Vehicle height (highest - lowest), mm - -22(-3 - -68) Honda Civic (FK7) - Spring rate N/mm (kgf/mm) - 39(4) Honda Civic (FK7) - Spring free height, mm - 220(Barrel) Honda Civic (FK7) - Damping force at 0.1 m/s, rebound/compression, N - 167/137 Honda Civic (FK7) - Vehicle height (highest - lowest), mm - -29(-10 - -75)

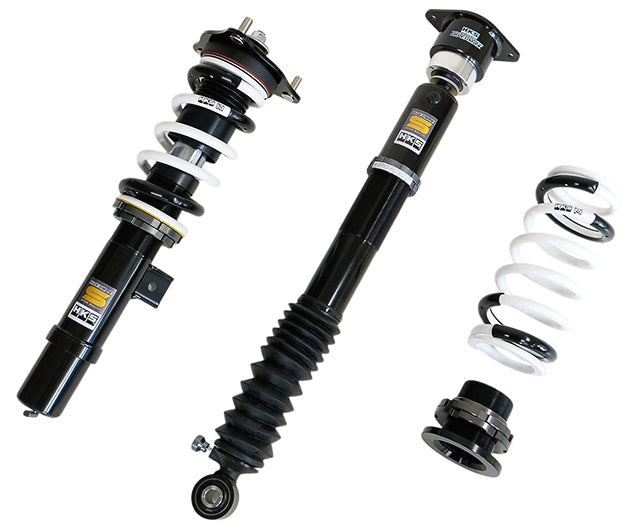

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AH009.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
