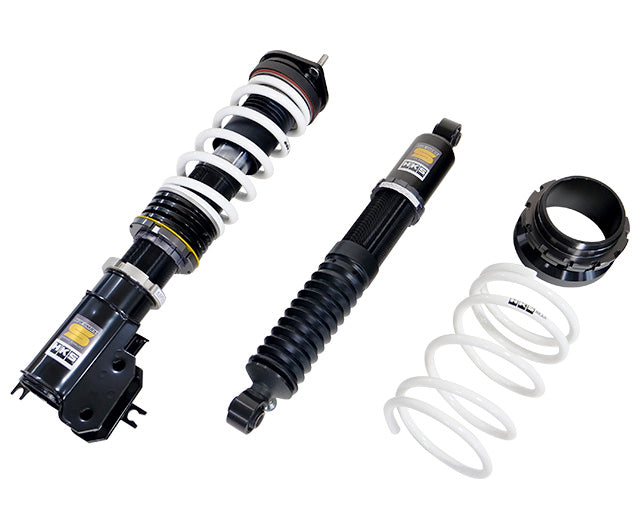

HKS Hipermax S Coilovers Daihatsu Copen (L880K) 80330-AD001

80330-AD001

FITMENT
Daihatsu Copen (L880K) 2002-2012

GENERAL FEATURES
Series - S
Daihatsu Copen (L880K) - Engine - JB-DET

FRONT FEATURES
Daihatsu Copen (L880K) - Spring rate N/mm (kgf/mm) - 39(4)
Daihatsu Copen (L880K) - Spring free height, mm - 200(Barrel)
Daihatsu Copen (L880K) - Damping force at 0.1 m/s, rebound/compression, N - 314/265
Daihatsu Copen (L880K) - Vehicle height (highest - lowest), mm - -8(0 - -37)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 39 ( 4.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 314 / 265
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 57 / 42

REAR FEATURES
Daihatsu Copen (L880K) - Spring rate N/mm (kgf/mm) - 26(2.7)
Daihatsu Copen (L880K) - Spring free height, mm - Special
Daihatsu Copen (L880K) - Damping force at 0.1 m/s, rebound/compression, N - 157/137
Daihatsu Copen (L880K) - Vehicle height (highest - lowest), mm - -12(-3 - -24)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount -
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 26 ( 2.7 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 157 / 137
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 50 / 64

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AD001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
