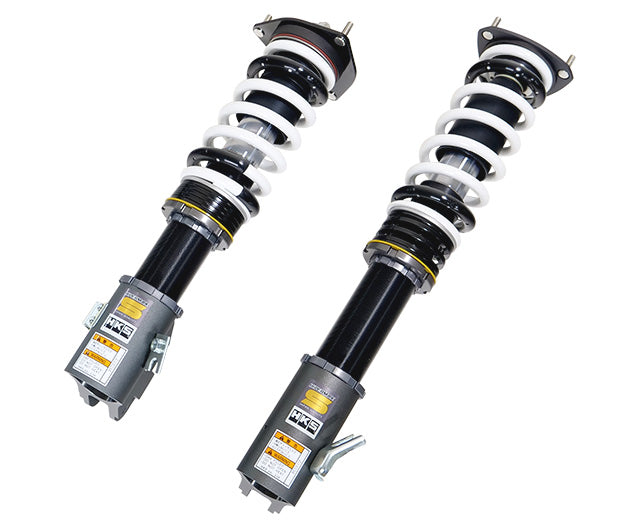

HKS Hipermax S Coilovers Subaru Impreza WRX STI (GDB) 80330-AF003

80330-AF003

FITMENT
Subaru Impreza WRX STI (GDB) 2004-2007

GENERAL FEATURES
Series - S
Subaru Impreza WRX STI (GDB) - Engine - EJ20(TURBO)

FRONT FEATURES
Subaru Impreza WRX STI (GDB) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GDB) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GDB) - Damping force at 0.1 m/s, rebound/compression, N - 873/456
Subaru Impreza WRX STI (GDB) - Vehicle height (highest - lowest), mm - -36(-5 - -57)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 873 / 456
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 57 / 42

REAR FEATURES
Subaru Impreza WRX STI (GDB) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru Impreza WRX STI (GDB) - Spring free height, mm - 250(Barrel)
Subaru Impreza WRX STI (GDB) - Damping force at 0.1 m/s, rebound/compression, N - 314/280
Subaru Impreza WRX STI (GDB) - Vehicle height (highest - lowest), mm - -22(-5 - -86)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 314 / 280
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 62 / 74

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF003.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
