HKS HIPERMAX S Coilovers Mazda MX-5 / MX-5 RF (ND) 80300-AZ003

HKS HIPERMAX S suspension kit for Mazda MX-5 / Roadster / MX-5 RF / Roadster RF, with adjustable ride height and damping. This is the original 80300-series specification.

FITMENT
Mazda MX-5 / Roadster (ND5RE) 2024/01–onwards — P5-VP.
Mazda MX-5 / Roadster (ND5RC) 2015/05–onwards — P5-VP.
Mazda MX-5 / Roadster (ND5RC) 2015/05–onwards — P5-VPR.
Mazda MX-5 RF / Roadster RF (NDERE) 2024/01–onwards — PE-VPR.
Mazda MX-5 RF / Roadster RF (NDERC) 2016/12–onwards — PE-VPR.

Use the manual setup for the exact chassis and transmission. ND5RC automatic models require adjustment from the supplied manual-transmission setting; RF NDERC application is manual transmission.

SPECIFICATIONS
Part number: 80300-AZ003
Front and rear suspension kit
Spring rates, front/rear: F=39(4)/R=29(3) N/mm (kgf/mm in brackets)
Spring free lengths, front/rear: 220(Barrel)/250(Barrel) mm
Ride-height and damping adjustment; setup must follow the vehicle-specific manual

SUPPLIED PARTS

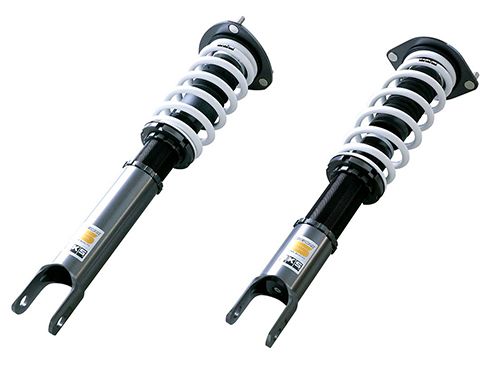

Front and rear damper and spring assemblies with the model-specific components listed in the HKS manual. The product photographs illustrate the suspension components.

INSTALLATION NOTES
Professional installation and wheel alignment are required. Set ride height and damping using the instructions for the exact chassis and engine. Confirm tyre, wheel and body clearances after installation.

HKS installation manual · HKS product details
