HKS HIPERMAX S Coilovers Toyota GR Supra (DB06 / DB02 / DB42 / DB22) 80300-AT023C

HKS HIPERMAX S suspension kit for Toyota GR Supra, with adjustable ride height and damping. This is the original 80300-series specification.

FITMENT
Toyota GR Supra (DB06) 2022/10–onwards — B58B30B.
Toyota GR Supra (DB02) 2020/04–onwards — B58.
Toyota GR Supra (DB42) 2019/05–onwards — B58.
Toyota GR Supra (DB22) 2019/05–onwards — B48.

Suspension error canceller is included. Use the setup data for the exact chassis; ride-height settings differ between Supra versions.

SPECIFICATIONS
Part number: 80300-AT023C
Front and rear suspension kit

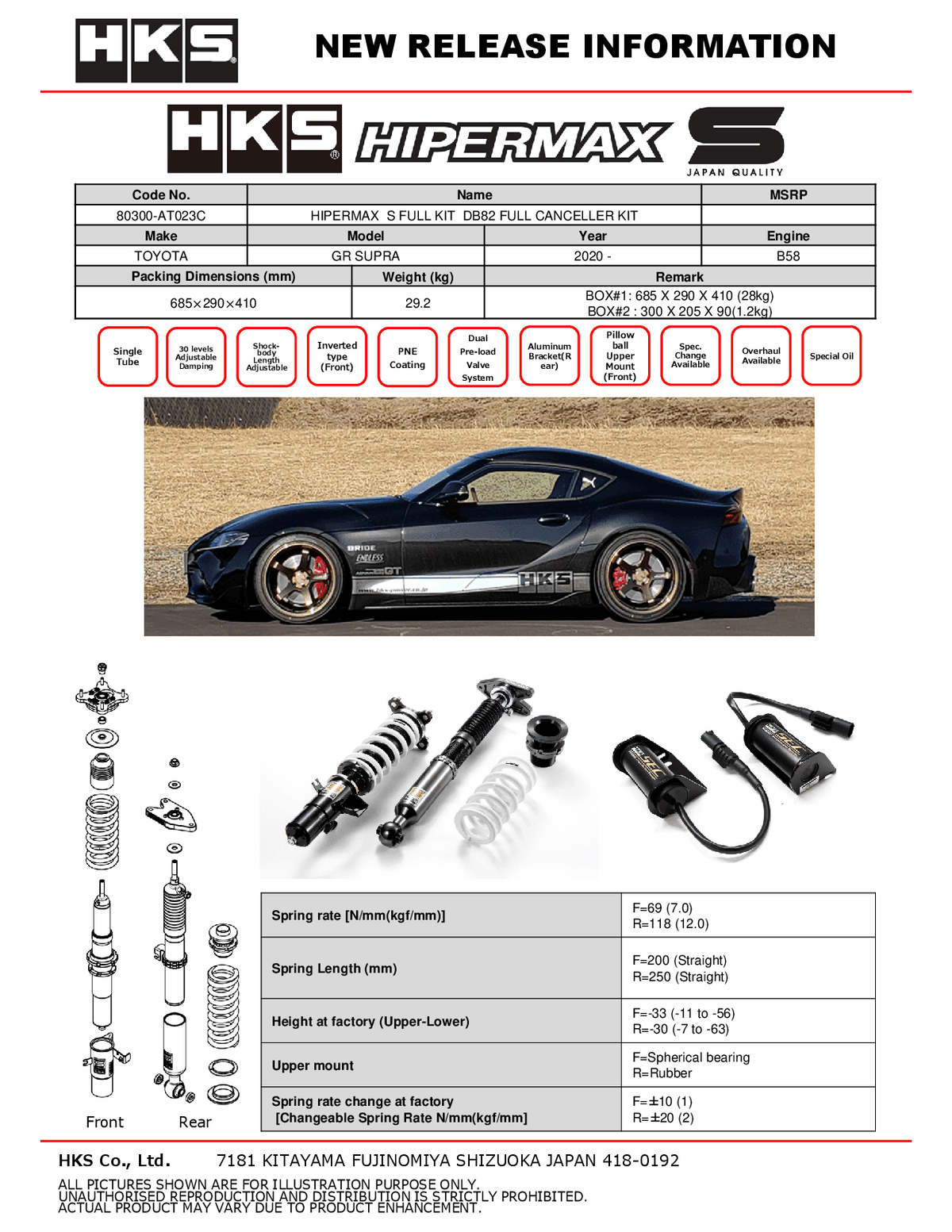

Spring rates, front/rear: F=69(7)/R=118(12) N/mm (kgf/mm in brackets)
Spring free lengths, front/rear: 200/250 mm
Ride-height and damping adjustment; setup must follow the vehicle-specific manual

SUPPLIED PARTS

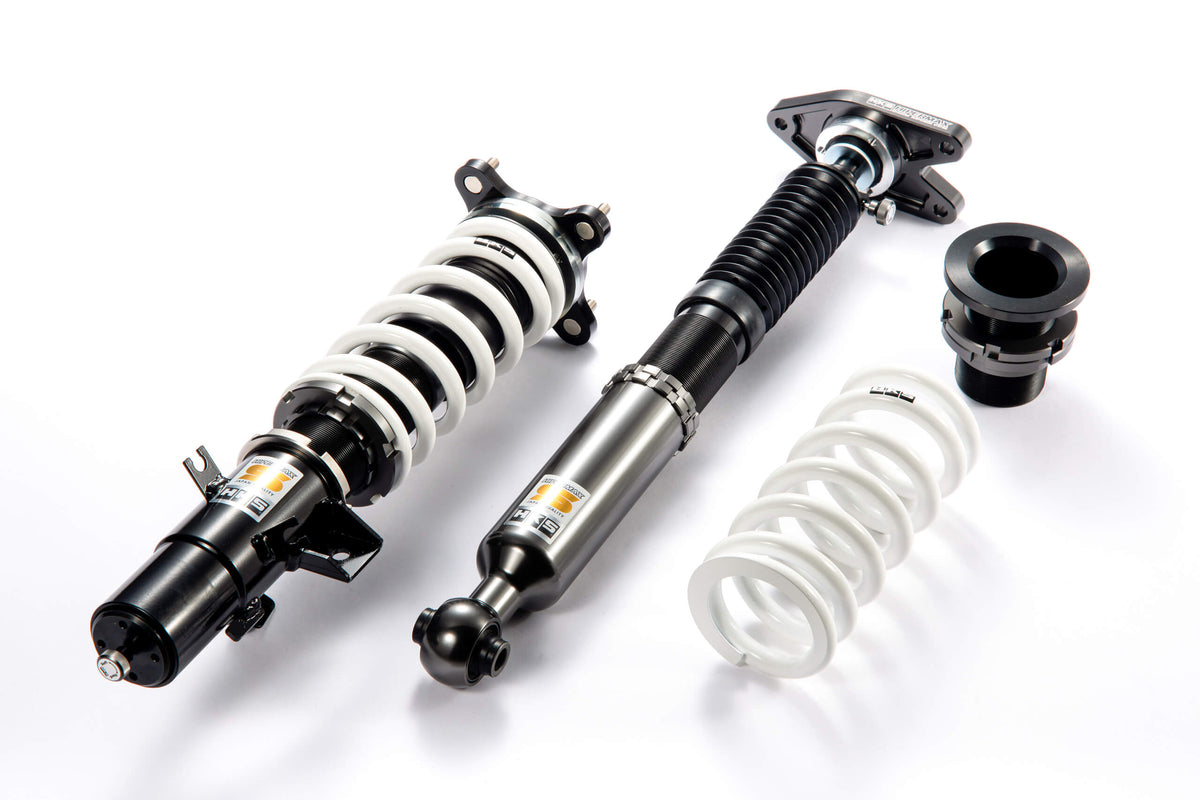

Front and rear damper and spring assemblies with the model-specific components listed in the HKS manual. The product photographs illustrate the suspension components.

INSTALLATION NOTES
Professional installation and wheel alignment are required. Set ride height and damping using the instructions for the exact chassis and engine. Confirm tyre, wheel and body clearances after installation.

HKS installation manual · HKS product details
