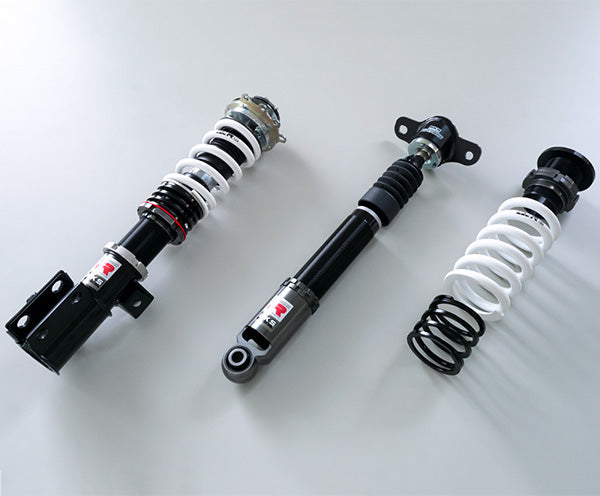

HKS Hipermax R Coilovers Toyota GR Yaris (GXPA16) 80310-AT005
3 278 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80310-AT005
FITMENT Toyota GR Yaris (GXPA16) 2020-2024
GENERAL FEATURES Series - R Toyota GR Yaris (GXPA16) - Engine - G16E-GTS / * Not compatible with the model after 2024 late and 2WD Additional manufacturer specification data follows below.
FRONT FEATURES Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 118(12) Toyota GR Yaris (GXPA16) - Spring free height, mm - 150 Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 858/652 Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -26(-1 - -126) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Spherical bearing Inverted/Normal type - Inverted Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 118 ( 12.0 ) Free height (mm) - 150 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 858 / 652 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 45 / 42
REAR FEATURES Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 157(16) Toyota GR Yaris (GXPA16) - Spring free height, mm - 170 Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 535/451 Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -25(-2 - -82) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Spherical bearing Inverted/Normal type - Normal Damper/Spring layout - Separated Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 157 ( 16.0 ) Free height (mm) - 170 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 535 / 451 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 56 / 41
Remarks
Cultivated with RZ high performance 1st edition. This is designed for 4WD vehicle.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80310-AT005.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
