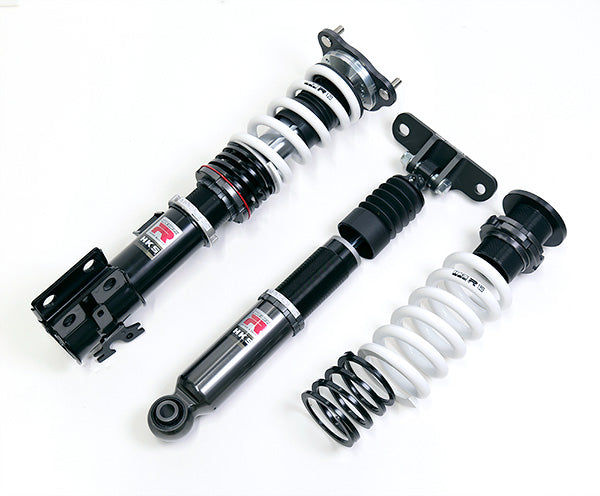

HKS Hipermax R Coilovers Toyota GR Yaris (GXPA16) 80310-AT008

80310-AT008

FITMENT
Toyota GR Yaris (GXPA16) 2024-

GENERAL FEATURES
Series - R
Toyota GR Yaris (GXPA16) - Engine - G16E-GTS / Not compatible with Gen1 model (up to March 2024)
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 150
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 755/672
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -24(0 - -54)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 118 ( 12.0 )
Free height (mm) - 150
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 755 / 672
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 44 / 43

REAR FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 177(18)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 170
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 486/500
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -21(0 - -71)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 177 ( 18.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 486 / 500
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 38 / 59

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AT008.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
