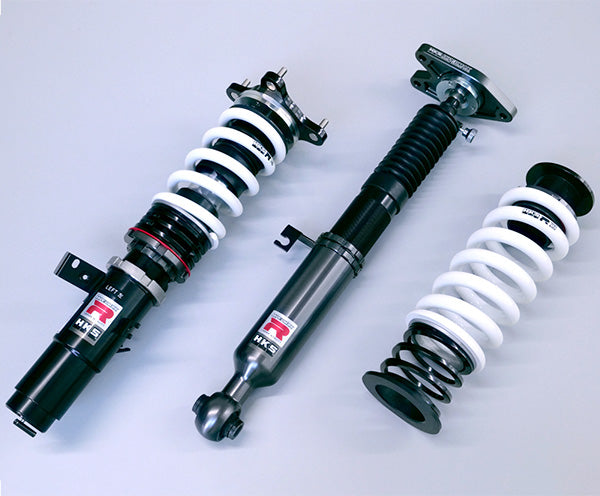

HKS Hipermax R Coilovers Toyota GR Supra (DB06) / Toyota GR Supra (DB02) / Toyota GR Supra (DB42) / Toyota GR Supra (DB22) / Toyota GR Supra (DB82) 80310-AT003

80310-AT003

FITMENT
Toyota GR Supra (DB06) 2022-
Toyota GR Supra (DB02) 2020-
Toyota GR Supra (DB42) 2019-
Toyota GR Supra (DB22) 2019-
Toyota GR Supra (DB82) 2019-

GENERAL FEATURES
Series - R
Toyota GR Supra (DB06) - Engine - B58B30B
Toyota GR Supra (DB02) - Engine - B58
Toyota GR Supra (DB42) - Engine - B58
Toyota GR Supra (DB22) - Engine - B48
Toyota GR Supra (DB82) - Engine - B48

FRONT FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota GR Supra (DB06) - Spring free height, mm - 150
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - 1854/613
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -24(-19 - -49)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota GR Supra (DB02) - Spring free height, mm - 150
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - 1854/613
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -24(-15 - -45)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota GR Supra (DB42) - Spring free height, mm - 150
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - 1854/613
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -24(-15 - -45)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota GR Supra (DB22) - Spring free height, mm - 150
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - 1854/613
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -24(-15 - -45)
Toyota GR Supra (DB82) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota GR Supra (DB82) - Spring free height, mm - 150
Toyota GR Supra (DB82) - Damping force at 0.1 m/s, rebound/compression, N - 1854/613
Toyota GR Supra (DB82) - Vehicle height (highest - lowest), mm - -24(-15 - -45)

REAR FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 196(20)
Toyota GR Supra (DB06) - Spring free height, mm - 200
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - 942/540
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -25(0 - -70)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 196(20)
Toyota GR Supra (DB02) - Spring free height, mm - 200
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - 942/540
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -29(0 - -71)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 196(20)
Toyota GR Supra (DB42) - Spring free height, mm - 200
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - 942/540
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -29(0 - -71)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 196(20)
Toyota GR Supra (DB22) - Spring free height, mm - 200
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - 942/540
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -29(0 - -71)
Toyota GR Supra (DB82) - Spring rate N/mm (kgf/mm) - 196(20)
Toyota GR Supra (DB82) - Spring free height, mm - 200
Toyota GR Supra (DB82) - Damping force at 0.1 m/s, rebound/compression, N - 942/540
Toyota GR Supra (DB82) - Vehicle height (highest - lowest), mm - -29(0 - -71)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AT003.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
