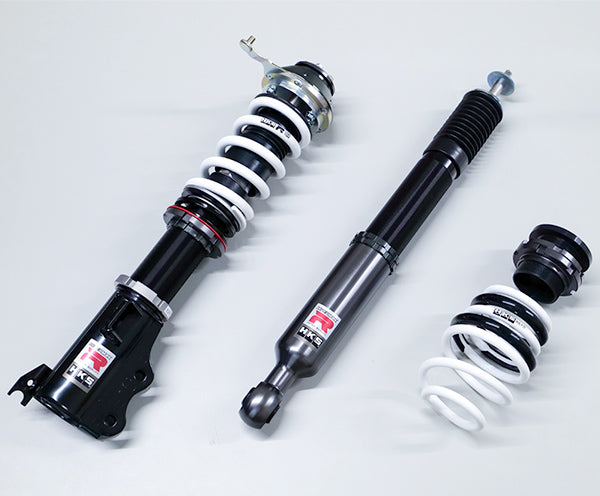

HKS Hipermax R Coilovers Suzuki Swift Sport (ZC33S) 80310-AS001

80310-AS001

FITMENT
Suzuki Swift Sport (ZC33S) 2017-2025

GENERAL FEATURES
Series - R
Suzuki Swift Sport (ZC33S) - Engine - K14C(TURBO)

FRONT FEATURES
Suzuki Swift Sport (ZC33S) - Spring rate N/mm (kgf/mm) - 98(10)
Suzuki Swift Sport (ZC33S) - Spring free height, mm - 150
Suzuki Swift Sport (ZC33S) - Damping force at 0.1 m/s, rebound/compression, N - 618/559
Suzuki Swift Sport (ZC33S) - Vehicle height (highest - lowest), mm - -36(-4 - -70)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (41.4)
Spring rate N/mm(kgf/mm) - 98 ( 10.0 )
Free height (mm) - 150
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 618 / 559
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 43 / 44

REAR FEATURES
Suzuki Swift Sport (ZC33S) - Spring rate N/mm (kgf/mm) - 78(8)
Suzuki Swift Sport (ZC33S) - Spring free height, mm - Special
Suzuki Swift Sport (ZC33S) - Damping force at 0.1 m/s, rebound/compression, N - 461/314
Suzuki Swift Sport (ZC33S) - Vehicle height (highest - lowest), mm - -33(-13 - -64)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 461 / 314
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 49 / 47

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AS001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
