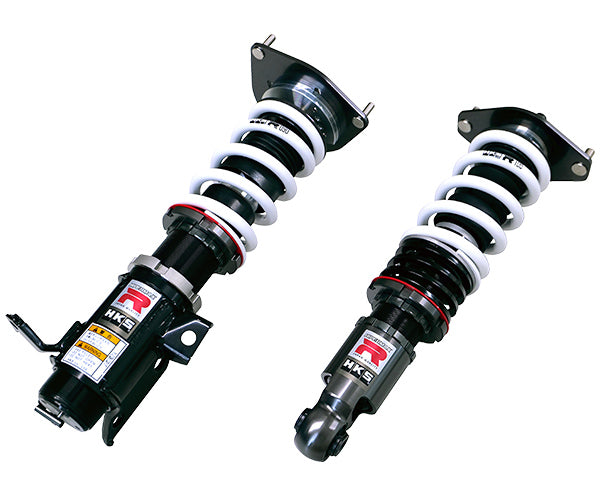

HKS Hipermax R Coilovers Subaru BRZ (ZD8) 80310-AF005

80310-AF005

FITMENT
Subaru BRZ (ZD8) 2021-

GENERAL FEATURES
Series - R
Subaru BRZ (ZD8) - Engine - FA24
Additional manufacturer specification data follows below.

FRONT FEATURES
Subaru BRZ (ZD8) - Spring rate N/mm (kgf/mm) - (88(9)
Subaru BRZ (ZD8) - Spring free height, mm - 150
Subaru BRZ (ZD8) - Damping force at 0.1 m/s, rebound/compression, N - 961/481
Subaru BRZ (ZD8) - Vehicle height (highest - lowest), mm - -24(0 - -41)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - 150
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 961 / 481
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 30 / 47

REAR FEATURES
Subaru BRZ (ZD8) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru BRZ (ZD8) - Spring free height, mm - 150
Subaru BRZ (ZD8) - Damping force at 0.1 m/s, rebound/compression, N - 510/471
Subaru BRZ (ZD8) - Vehicle height (highest - lowest), mm - -29(0 - -55)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 98 ( 10.0 )
Free height (mm) - 150
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - -10（1）～+20（2）
Damping force (Rebound/Damping)N* - 510 / 471
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 48 / 51

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AF005.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
