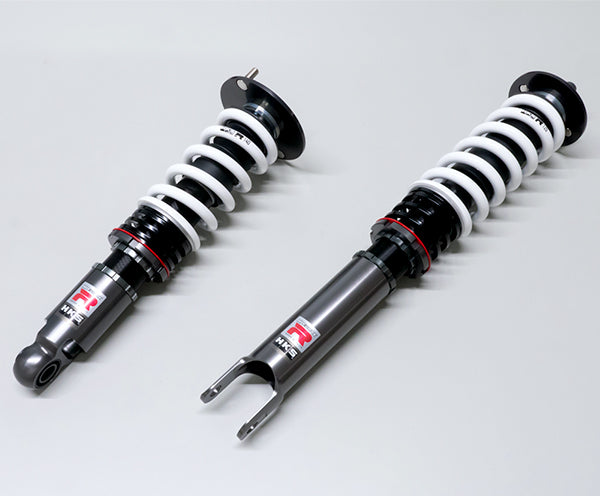

HKS Hipermax R Coilovers Nissan Skyline GT-R (BNR32) 80310-AN004

80310-AN004

FITMENT
Nissan Skyline GT-R (BNR32) 1989-1994

GENERAL FEATURES
Series - R
Nissan Skyline GT-R (BNR32) - Engine - RB26DETT

FRONT FEATURES
Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 137(14)
Nissan Skyline GT-R (BNR32) - Spring free height, mm - 170
Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 1162/701
Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -42(-9 - -63)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 137 ( 14.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 1162 / 701
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 42 / 45

REAR FEATURES
Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 118(12)
Nissan Skyline GT-R (BNR32) - Spring free height, mm - 200
Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 623/608
Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -17(0 - -48)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 118 ( 12.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 623 / 608
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 55 / 81

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AN004.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
