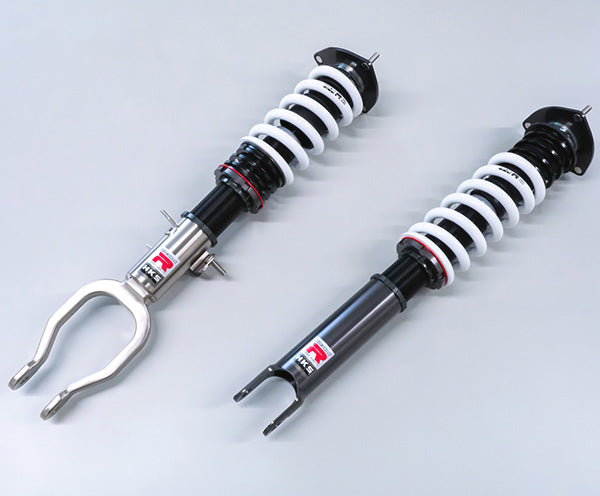

HKS Hipermax R Coilovers Nissan GT-R (R35) 80310-AN001

80310-AN001

FITMENT
Nissan GT-R (R35) 2007-

GENERAL FEATURES
Series - R
Nissan GT-R (R35) - Engine - VR38DETT

FRONT FEATURES
Nissan GT-R (R35) - Spring rate N/mm (kgf/mm) - 196(20)
Nissan GT-R (R35) - Spring free height, mm - 170
Nissan GT-R (R35) - Damping force at 0.1 m/s, rebound/compression, N - 2266/515
Nissan GT-R (R35) - Vehicle height (highest - lowest), mm - -12(-2 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 196 ( 20.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 2266 / 515
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 47 / 52

REAR FEATURES
Nissan GT-R (R35) - Spring rate N/mm (kgf/mm) - 157(16)
Nissan GT-R (R35) - Spring free height, mm - 200
Nissan GT-R (R35) - Damping force at 0.1 m/s, rebound/compression, N - 711/721
Nissan GT-R (R35) - Vehicle height (highest - lowest), mm - -16(0 - -60)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 157 ( 16.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 711 / 721
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 63 / 73

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AN001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
