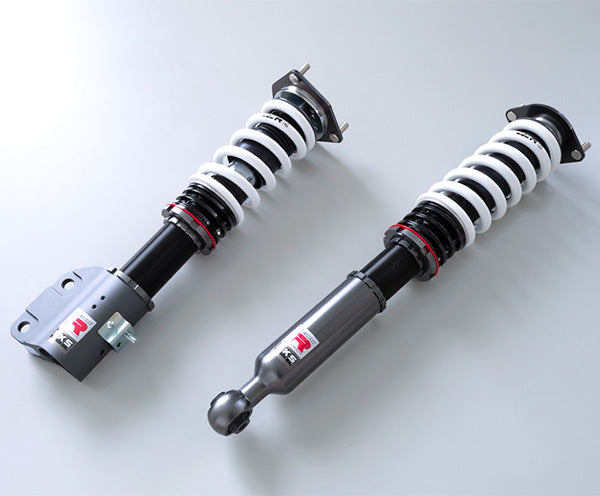

HKS Hipermax R Coilovers Mitsubishi Lancer Evolution X (CZ4A) 80310-AM001

80310-AM001

FITMENT
Mitsubishi Lancer Evolution X (CZ4A) 2007-2015

GENERAL FEATURES
Series - R
Mitsubishi Lancer Evolution X (CZ4A) - Engine - 4B11
Additional manufacturer specification data follows below.

FRONT FEATURES
Mitsubishi Lancer Evolution X (CZ4A) - Spring rate N/mm (kgf/mm) - 137(14)
Mitsubishi Lancer Evolution X (CZ4A) - Spring free height, mm - 170
Mitsubishi Lancer Evolution X (CZ4A) - Damping force at 0.1 m/s, rebound/compression, N - 927/623
Mitsubishi Lancer Evolution X (CZ4A) - Vehicle height (highest - lowest), mm - -30(-8 - -73)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 137 ( 14.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 927 / 623
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 49 / 50

REAR FEATURES
Mitsubishi Lancer Evolution X (CZ4A) - Spring rate N/mm (kgf/mm) - 118(12)
Mitsubishi Lancer Evolution X (CZ4A) - Spring free height, mm - 200
Mitsubishi Lancer Evolution X (CZ4A) - Damping force at 0.1 m/s, rebound/compression, N - 785/525
Mitsubishi Lancer Evolution X (CZ4A) - Vehicle height (highest - lowest), mm - -18(0 - -67)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 118 ( 12.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 785 / 525
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 53 / 53

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AM001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
