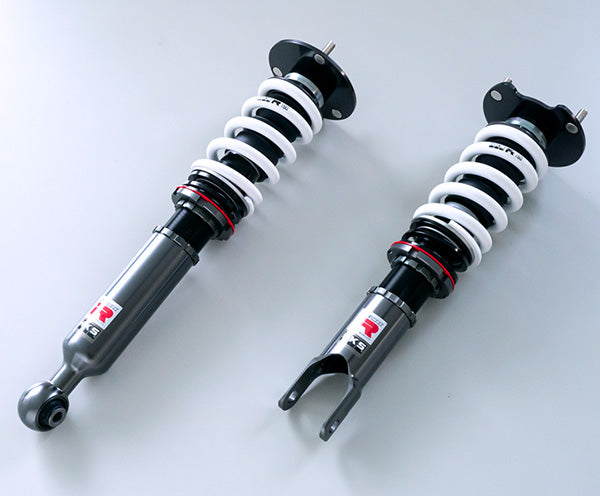

HKS Hipermax R Coilovers Mazda RX-7 (FD3S) 80310-AZ001
2 290 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80310-AZ001
FITMENT Mazda RX-7 (FD3S) 1991-2002
GENERAL FEATURES Series - R Mazda RX-7 (FD3S) - Engine - 13B-REW
FRONT FEATURES Mazda RX-7 (FD3S) - Spring rate N/mm (kgf/mm) - 157(16) Mazda RX-7 (FD3S) - Spring free height, mm - 150 Mazda RX-7 (FD3S) - Damping force at 0.1 m/s, rebound/compression, N - 1648/549 Mazda RX-7 (FD3S) - Vehicle height (highest - lowest), mm - -29(0 - -68) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Spherical bearing Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (41.4) Spring rate N/mm(kgf/mm) - 157 ( 16.0 ) Free height (mm) - 150 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 1648 / 549 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 40 / 47
REAR FEATURES Mazda RX-7 (FD3S) - Spring rate N/mm (kgf/mm) - 177(18) Mazda RX-7 (FD3S) - Spring free height, mm - 150 Mazda RX-7 (FD3S) - Damping force at 0.1 m/s, rebound/compression, N - 1157/559 Mazda RX-7 (FD3S) - Vehicle height (highest - lowest), mm - -35(0 - -71) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Spherical bearing Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (41.4) Spring rate N/mm(kgf/mm) - 177 ( 18.0 ) Free height (mm) - 150 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 1157 / 559 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 45 / 54
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80310-AZ001.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
