GENERAL FEATURES Series - R Honda S2000 (AP2) - Engine - F22C / Vehicle height data is based on AP1. Honda S2000 (AP1) - Engine - F20C / The vehicle height data is of AP1.
FRONT FEATURES Honda S2000 (AP2) - Spring rate N/mm (kgf/mm) - 157(16) Honda S2000 (AP2) - Spring free height, mm - 170 Honda S2000 (AP2) - Damping force at 0.1 m/s, rebound/compression, N - 1515/441 Honda S2000 (AP2) - Vehicle height (highest - lowest), mm - -29(3 - -59) Honda S2000 (AP1) - Spring rate N/mm (kgf/mm) - 157(16) Honda S2000 (AP1) - Spring free height, mm - 170 Honda S2000 (AP1) - Damping force at 0.1 m/s, rebound/compression, N - 1515/441 Honda S2000 (AP1) - Vehicle height (highest - lowest), mm - -29(3 - -59)
REAR FEATURES Honda S2000 (AP2) - Spring rate N/mm (kgf/mm) - 157(16) Honda S2000 (AP2) - Spring free height, mm - 150 Honda S2000 (AP2) - Damping force at 0.1 m/s, rebound/compression, N - 1152/373 Honda S2000 (AP2) - Vehicle height (highest - lowest), mm - -28(0 - -64) Honda S2000 (AP1) - Spring rate N/mm (kgf/mm) - 157(16) Honda S2000 (AP1) - Spring free height, mm - 150 Honda S2000 (AP1) - Damping force at 0.1 m/s, rebound/compression, N - 1152/373 Honda S2000 (AP1) - Vehicle height (highest - lowest), mm - -28(0 - -64)

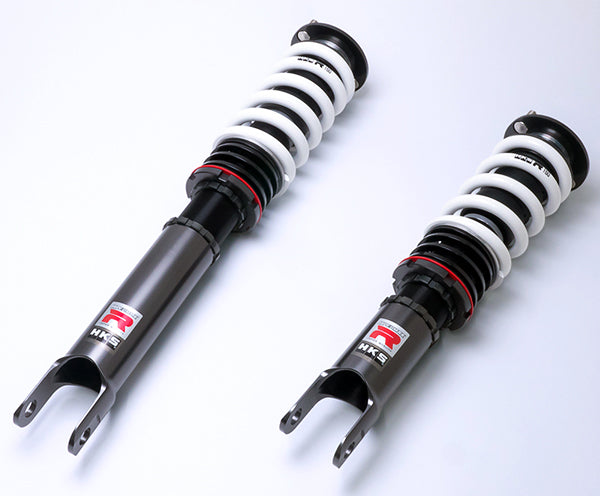

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80310-AH001.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
