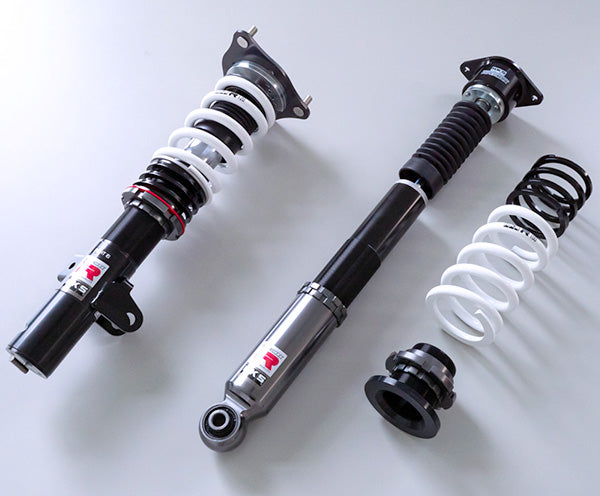

HKS Hipermax R Coilovers Honda Civic Type R (FK8) 80310-AH003
2 542 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80310-AH003
FITMENT Honda Civic Type R (FK8) 2017-2022
GENERAL FEATURES Series - R Honda Civic Type R (FK8) - Engine - K20C Additional manufacturer specification data follows below.
FRONT FEATURES Honda Civic Type R (FK8) - Spring rate N/mm (kgf/mm) - 118(12) Honda Civic Type R (FK8) - Spring free height, mm - 150 Honda Civic Type R (FK8) - Damping force at 0.1 m/s, rebound/compression, N - 1172/530 Honda Civic Type R (FK8) - Vehicle height (highest - lowest), mm - -23(-11 - -39) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - × Upper mount - Spherical bearing Inverted/Normal type - Inverted Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 118 ( 12.0 ) Free height (mm) - 150 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - +20 ( 2 ) Damping force (Rebound/Damping)N* - 1172 / 530 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 53 / 46
REAR FEATURES Honda Civic Type R (FK8) - Spring rate N/mm (kgf/mm) - 98(10) Honda Civic Type R (FK8) - Spring free height, mm - 150 Honda Civic Type R (FK8) - Damping force at 0.1 m/s, rebound/compression, N - 294/280 Honda Civic Type R (FK8) - Vehicle height (highest - lowest), mm - -28(-3 - -52) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Spherical bearing Inverted/Normal type - Normal Damper/Spring layout - Separated Spring rate change at factory - Possible Damping force adjustment with wire - Yes Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 150 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - +20 ( 2 ) Damping force (Rebound/Damping)N* - 294 / 280 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 77 / 72
Remarks
Remark - This kit is for CIVIC TYPE R, which is not able to adopt on other grades of CIVIC. *Error is displayed when the stock dampers are removed. An optional canceller is required to avoid the error display.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80310-AH003.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
