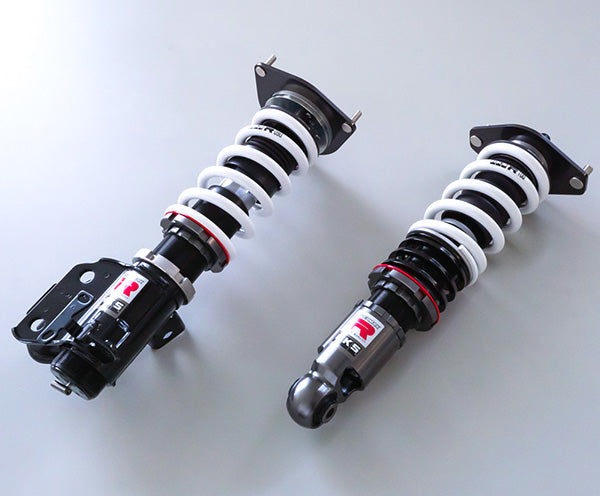

HKS Hipermax R Coilovers Toyota 86 (ZN6) / Subaru BRZ (ZC6) 80310-AT001

80310-AT001

FITMENT
Toyota 86 (ZN6) 2012-2021
Subaru BRZ (ZC6) 2012-2021

GENERAL FEATURES
Series - R
Toyota 86 (ZN6) - Engine - FA20
Subaru BRZ (ZC6) - Engine - FA20

FRONT FEATURES
Toyota 86 (ZN6) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota 86 (ZN6) - Spring free height, mm - 170
Toyota 86 (ZN6) - Damping force at 0.1 m/s, rebound/compression, N - 765/392
Toyota 86 (ZN6) - Vehicle height (highest - lowest), mm - -19(0 - -40)
Subaru BRZ (ZC6) - Spring rate N/mm (kgf/mm) - 88(9)
Subaru BRZ (ZC6) - Spring free height, mm - 170
Subaru BRZ (ZC6) - Damping force at 0.1 m/s, rebound/compression, N - 765/392
Subaru BRZ (ZC6) - Vehicle height (highest - lowest), mm - -19(0 - -40)

REAR FEATURES
Toyota 86 (ZN6) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota 86 (ZN6) - Spring free height, mm - 150
Toyota 86 (ZN6) - Damping force at 0.1 m/s, rebound/compression, N - 432/461
Toyota 86 (ZN6) - Vehicle height (highest - lowest), mm - -20(0 - -48)
Subaru BRZ (ZC6) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru BRZ (ZC6) - Spring free height, mm - 150
Subaru BRZ (ZC6) - Damping force at 0.1 m/s, rebound/compression, N - 432/461
Subaru BRZ (ZC6) - Vehicle height (highest - lowest), mm - -20(0 - -48)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AT001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
