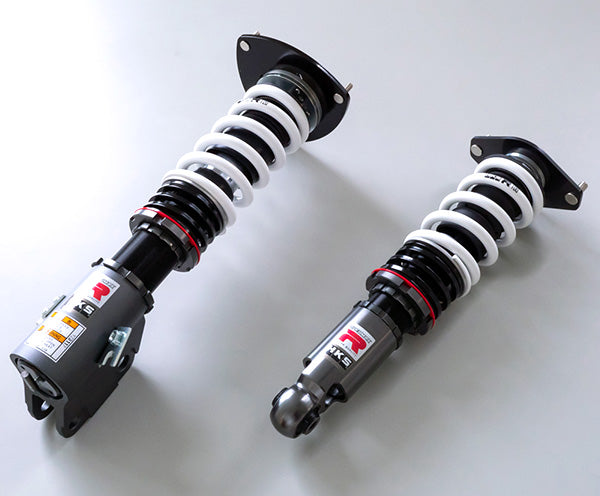

HKS Hipermax R Coilovers Subaru Impreza WRX STI (GVF) / Subaru Impreza WRX STI (GVB) / Subaru Impreza WRX STI (GRF) / Subaru Impreza WRX STI (GRB) 80310-AF001

80310-AF001

FITMENT
Subaru Impreza WRX STI (GVF) 2010-2014
Subaru Impreza WRX STI (GVB) 2010-2014
Subaru Impreza WRX STI (GRF) 2009-2014
Subaru Impreza WRX STI (GRB) 2007-2014

GENERAL FEATURES
Series - R
Subaru Impreza WRX STI (GVF) - Engine - EJ25(TURBO) / Vehicle height data is measured on GRB.
Subaru Impreza WRX STI (GVB) - Engine - EJ20(TURBO) / Vehicle height data is measured on GRB.
Subaru Impreza WRX STI (GRF) - Engine - EJ25(TURBO) / Vehicle height data is measured on GRB.
Subaru Impreza WRX STI (GRB) - Engine - EJ20(TURBO)

FRONT FEATURES
Subaru Impreza WRX STI (GVF) - Spring rate N/mm (kgf/mm) - 118(12)
Subaru Impreza WRX STI (GVF) - Spring free height, mm - 170
Subaru Impreza WRX STI (GVF) - Damping force at 0.1 m/s, rebound/compression, N - 1182/618
Subaru Impreza WRX STI (GVF) - Vehicle height (highest - lowest), mm - -35(0 - -45)
Subaru Impreza WRX STI (GVB) - Spring rate N/mm (kgf/mm) - 118(12)
Subaru Impreza WRX STI (GVB) - Spring free height, mm - 170
Subaru Impreza WRX STI (GVB) - Damping force at 0.1 m/s, rebound/compression, N - 1182/618
Subaru Impreza WRX STI (GVB) - Vehicle height (highest - lowest), mm - -35(0 - -45)
Subaru Impreza WRX STI (GRF) - Spring rate N/mm (kgf/mm) - 118(12)
Subaru Impreza WRX STI (GRF) - Spring free height, mm - 170
Subaru Impreza WRX STI (GRF) - Damping force at 0.1 m/s, rebound/compression, N - 1182/618
Subaru Impreza WRX STI (GRF) - Vehicle height (highest - lowest), mm - -35(0 - -45)
Subaru Impreza WRX STI (GRB) - Spring rate N/mm (kgf/mm) - 118(12)
Subaru Impreza WRX STI (GRB) - Spring free height, mm - 170
Subaru Impreza WRX STI (GRB) - Damping force at 0.1 m/s, rebound/compression, N - 1182/618
Subaru Impreza WRX STI (GRB) - Vehicle height (highest - lowest), mm - -35(0 - -45)

REAR FEATURES
Subaru Impreza WRX STI (GVF) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru Impreza WRX STI (GVF) - Spring free height, mm - 150
Subaru Impreza WRX STI (GVF) - Damping force at 0.1 m/s, rebound/compression, N - 535/437
Subaru Impreza WRX STI (GVF) - Vehicle height (highest - lowest), mm - -38(-1 - -53)
Subaru Impreza WRX STI (GVB) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru Impreza WRX STI (GVB) - Spring free height, mm - 150
Subaru Impreza WRX STI (GVB) - Damping force at 0.1 m/s, rebound/compression, N - 535/437
Subaru Impreza WRX STI (GVB) - Vehicle height (highest - lowest), mm - -38(-1 - -53)
Subaru Impreza WRX STI (GRF) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru Impreza WRX STI (GRF) - Spring free height, mm - 150
Subaru Impreza WRX STI (GRF) - Damping force at 0.1 m/s, rebound/compression, N - 535/437
Subaru Impreza WRX STI (GRF) - Vehicle height (highest - lowest), mm - -38(-1 - -53)
Subaru Impreza WRX STI (GRB) - Spring rate N/mm (kgf/mm) - 98(10)
Subaru Impreza WRX STI (GRB) - Spring free height, mm - 150
Subaru Impreza WRX STI (GRB) - Damping force at 0.1 m/s, rebound/compression, N - 535/437
Subaru Impreza WRX STI (GRB) - Vehicle height (highest - lowest), mm - -38(-1 - -53)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80310-AF001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
